In this article we will see about ST3151A07-1-XC-3 T-con Board Voltage and Signal Details Data sheet. Model Number ST3151A07-1-XC-3. From this articles user can downloads CSOT 32 inch tcon data signal and voltage details data sheet PDF etc….
Table of Contents

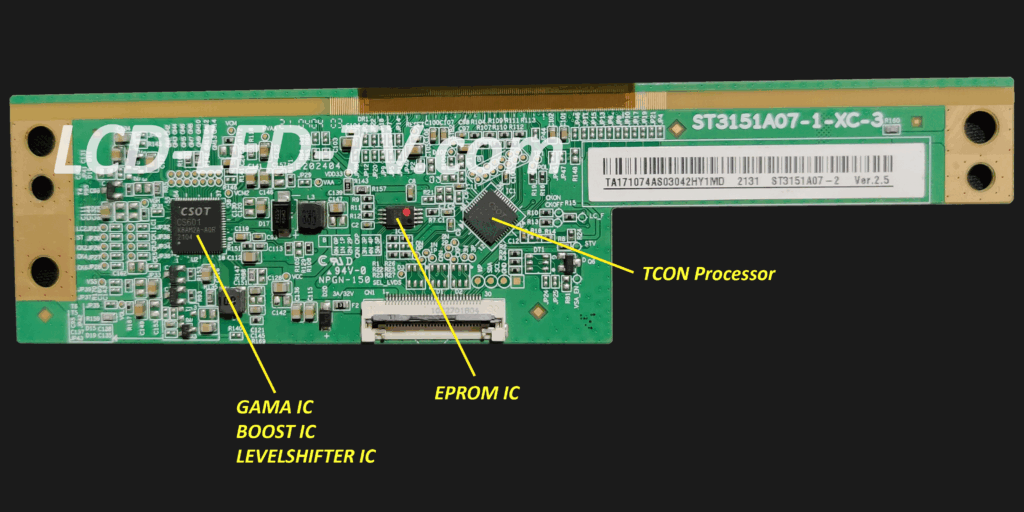

Basic details:

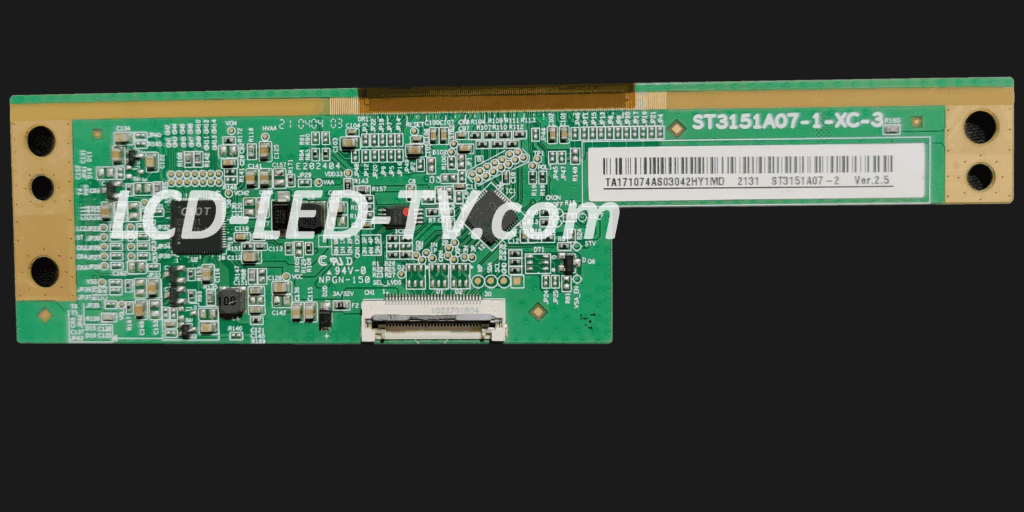

In this section you can see some basic details given about this tcon board so beginner also can understand about different different ic and section on tcon. Model Number ST3151A07-1-XC-3.

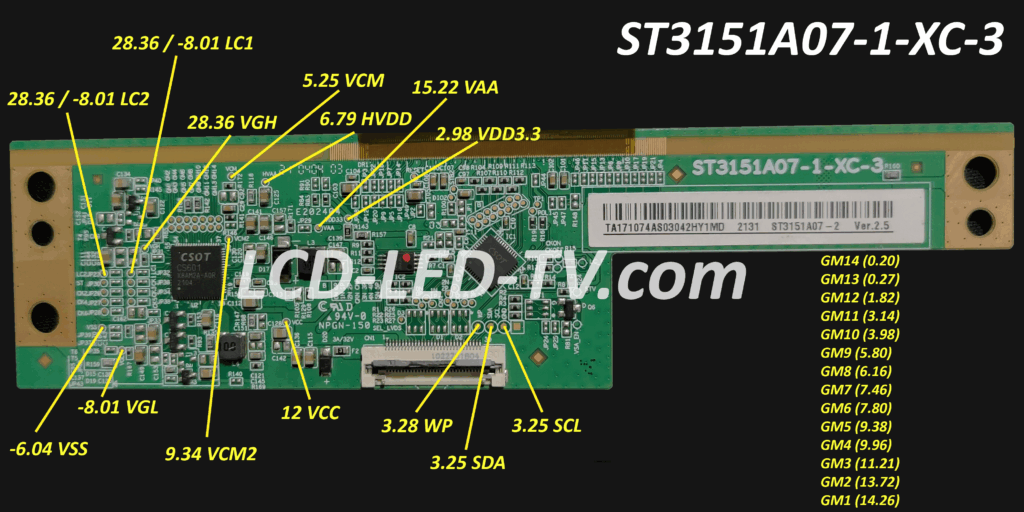

Voltage Details:
In this section we will see about all voltage which is required to operate this tcon board. with this data TV repairer can under stand and easily identify problem while repairing this LG panel. In this section we will find all voltage which is present for example VGH, VGL, HVDD (Half of the AVDD), AVDD,VDD, VGH ODD, VGH Even etc…
All voltage details given in this below table for your reference…..
Boost Voltage:
- VCC 12
- VGH 28.36
- VGL -8.01
- VSS -6.04
- VDD 15.22 (AVDD)
- HVDD 6.79
- Reset -7.95
- VCM 5.25
- TP1 0.541
- POl (1.5)
- VCM2 (9.34)
Gama Voltage:
- GM14 (0.20)
- GM13 (0.27)
- GM12 (1.82)
- GM11 (3.14)
- GM10 (3.98)
- GM9 (5.80)
- GM8 (6.16)
- GM7 (7.46)
- GM6 (7.80)
- GM5 (9.38)
- GM4 (9.96)
- GM3 (11.21)
- GM2 (13.72)
- GM1 (14.26)
All Signal or Pulse Details:

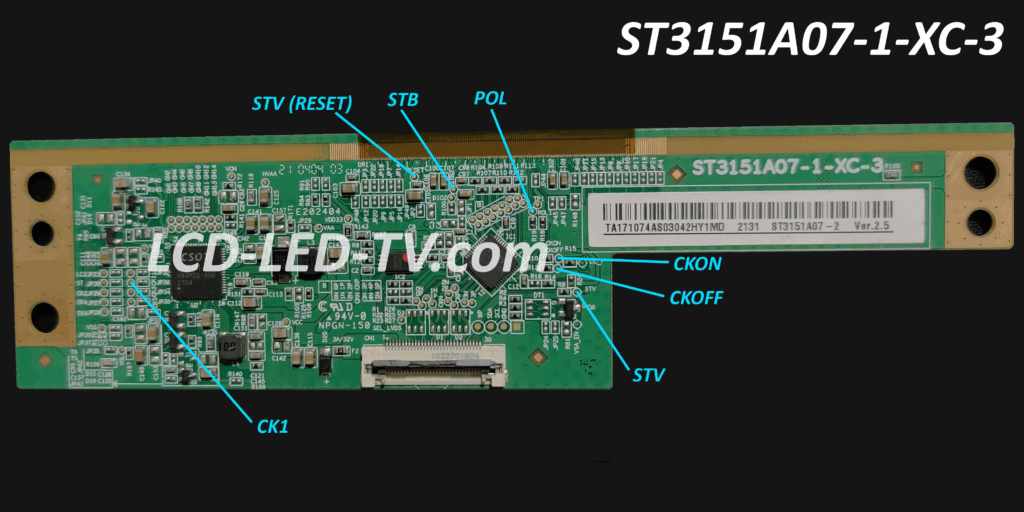

In This section we will see about all pulse or signal details of this CSHOT tcon board (ST3151A07-1-XC-3) with graphical representation. For example CKV, CKVB, CLK, STV, VTS, STVP,OE, EO, GCLK, MCLK,GST etc….

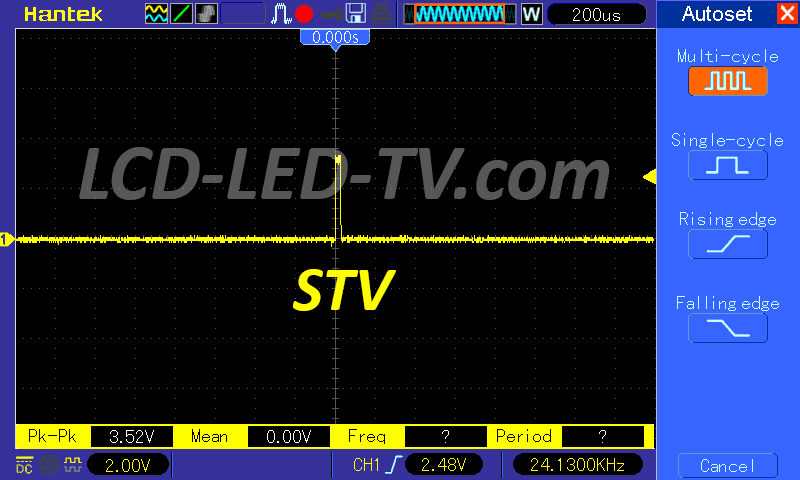

STV (Reset) Pulse:

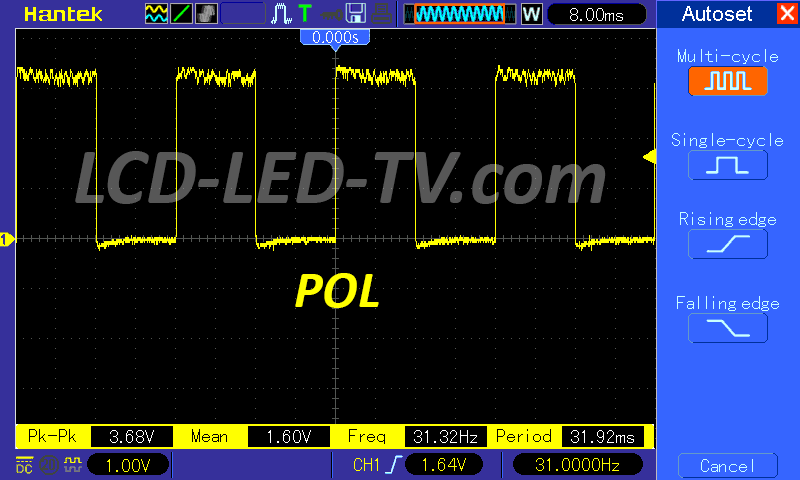

POL Pulse:

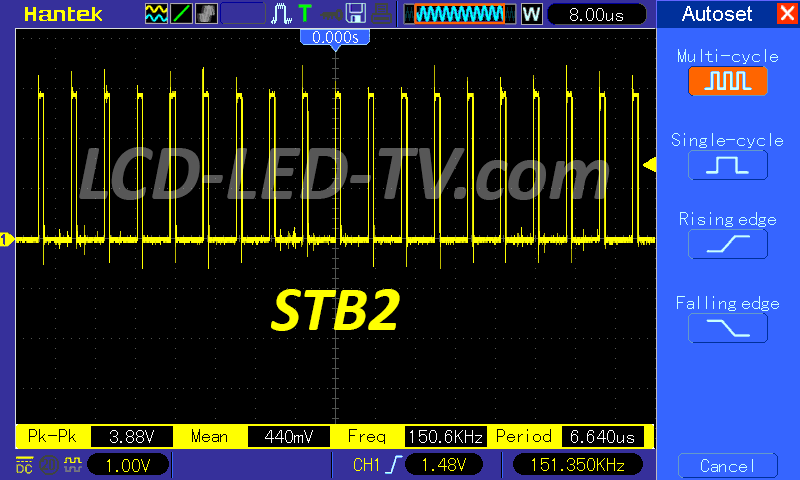

STB2 Pulse:
CKON Pulse:

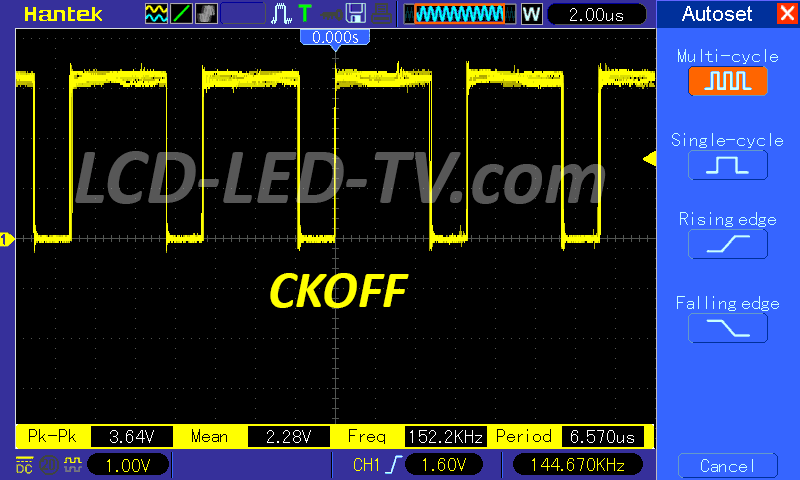

CKOFF Pulse:

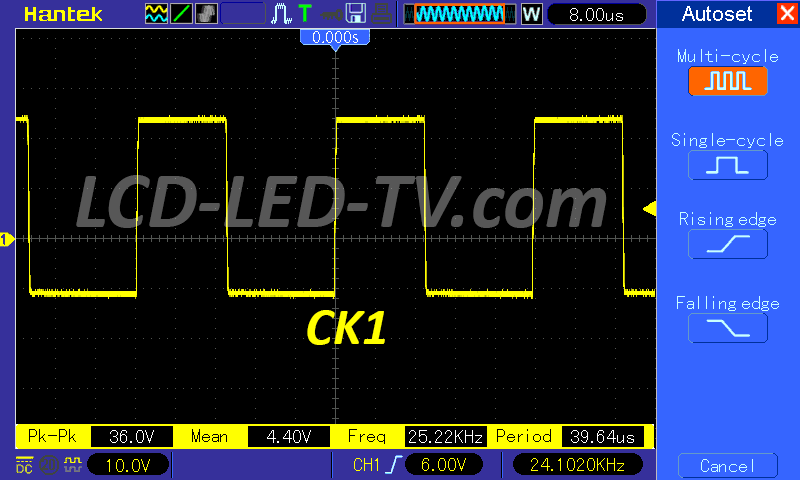

CK1 Pulse:
Pulse Comparison:

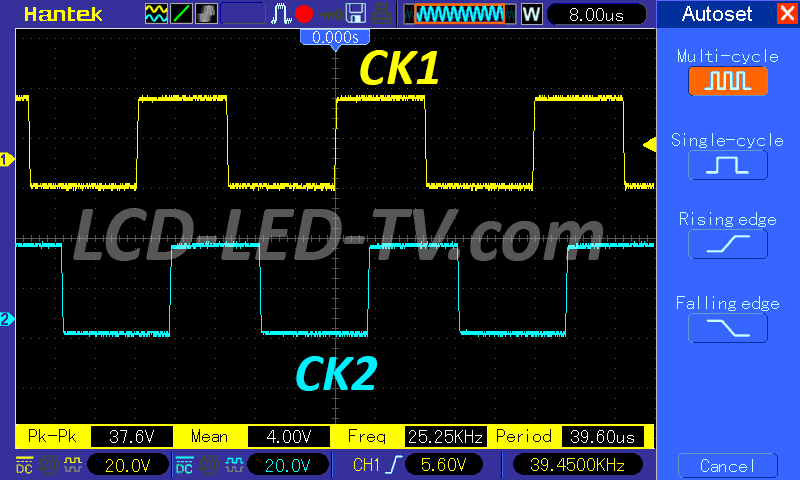

CK1VS CK2 Pulse:

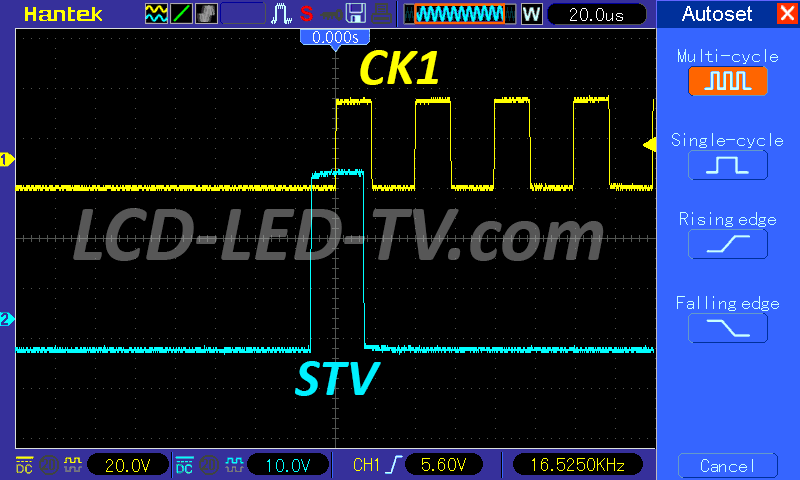

ck1 vs stv(Reset) Pulse:

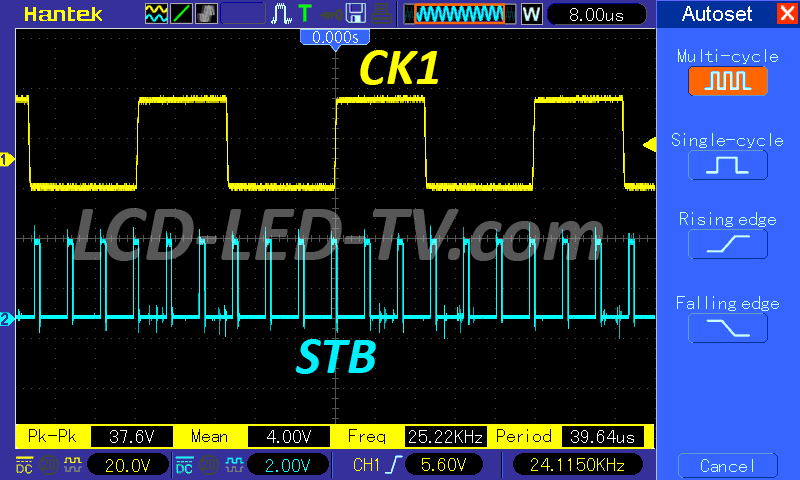

CK1 vs STB2 Pulse:

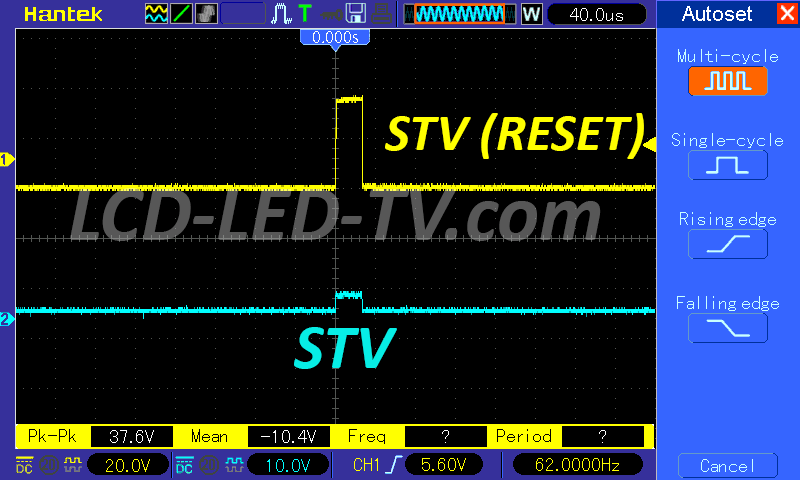

STV(Reset) vs STV Pulse:
CK1 vs STB2 pulse:
