In this article we will see about AUO T-con Board Voltage and Signal Details. Model Number T320HV03.0 CTRL BD 32T36-C08. From this articles user can downloads AUO 32 inch 2K FHD tcon data signal and voltage details data sheet PDF etc….
Table of Contents

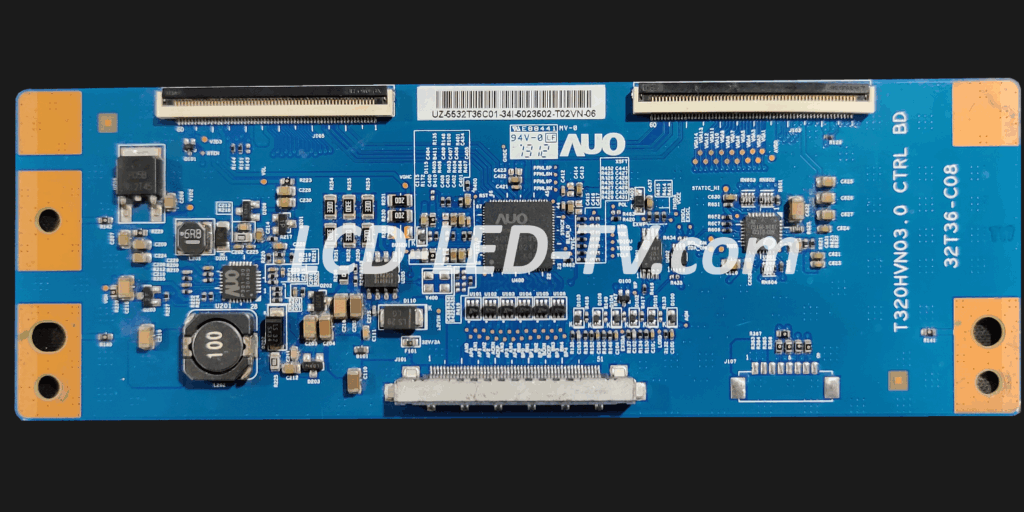

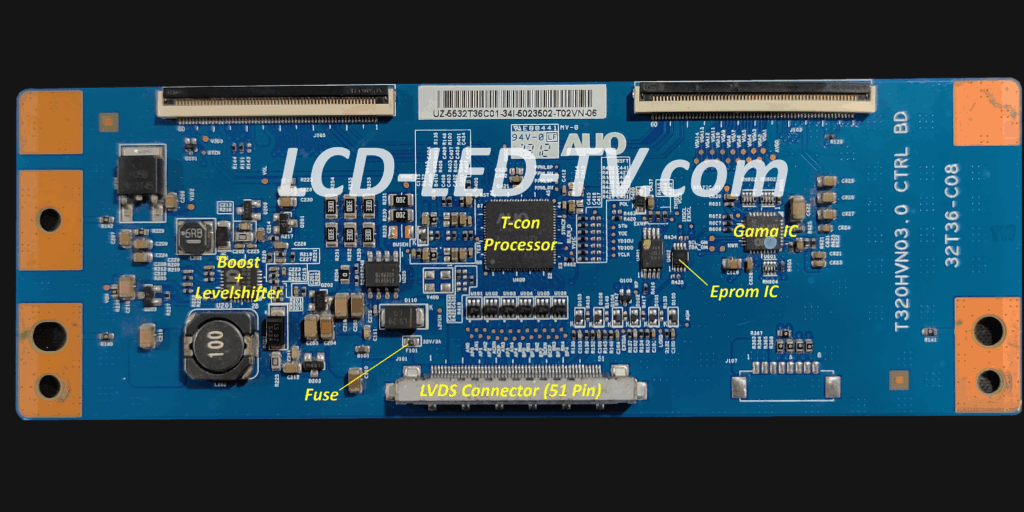

Basic details:
In this section you can see some basic details given about this tcon board so beginner also can understand about different different ic and section on tcon.
Voltage Details:
In this section we will see about all voltage which is required to operate this tcon board. with this data TV repairer can under stand and easily identify problem while repairing this AUO panel. In this section we will find all voltage which is present for example VGH, VGL, HVDD (Half of the AVDD), AVDD,VDD, VGH ODD, VGH Even etc…

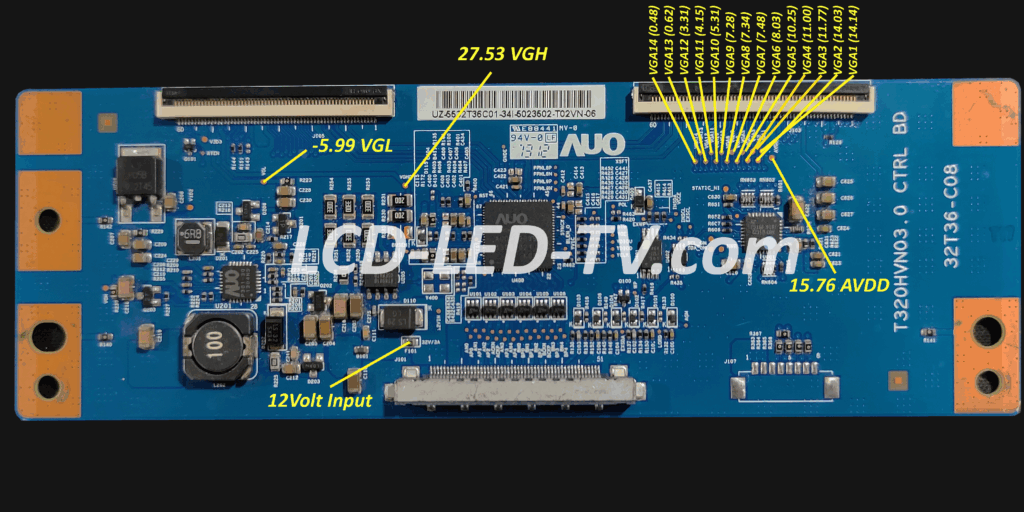

All voltage details given in this below table for your reference….
VGH (27.53)
VGL (-5.99)
AVDD (15.76)
STATIC_HI (16.529
SCL_GM (3.03)
SDA_GM (3.03)
VGA1 (14.14)
VGA2 (14.03)
VGA3 (11.77)
VGA4 (11.00)
VGA5 (10.25)
VGA6 (8.03)
VGA7 (7.48)
VGA8 (7.34)
VGA9 (7.28)
VGA10 (5.31)
VGA11 (4.15)
VGA12 (3.31)
VGA13 (0.62)
VGA14 (0.48)
IC Name and Number:
- AUO P301.30 (Boost IC )
- AUO 61422 (GAMA IC)
- AUO-12309 (Tcon IC / Tcon Processor)
All Signal or Pulse Details:
In his section we will see about all pulse or signal details of this AUO 2k tcon board with graphical representation. For example STB, YOE, YDIOU, YDIOD, YCLK, YV1C
LVDS, RSDS etc….

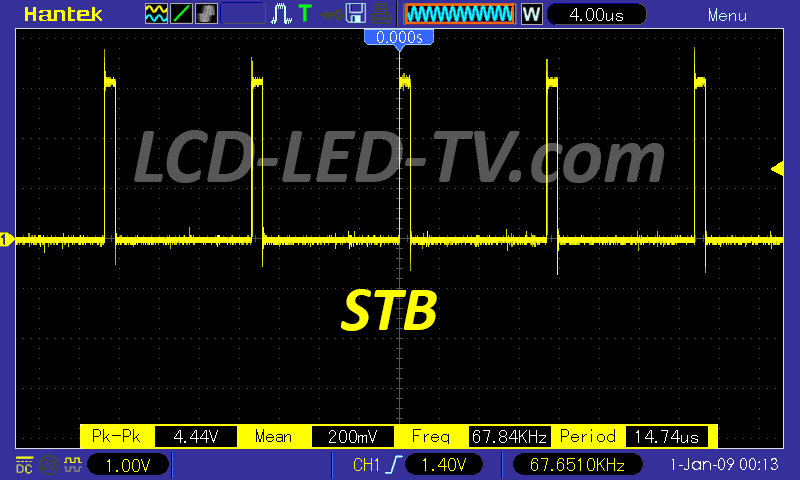

STB Pulse:

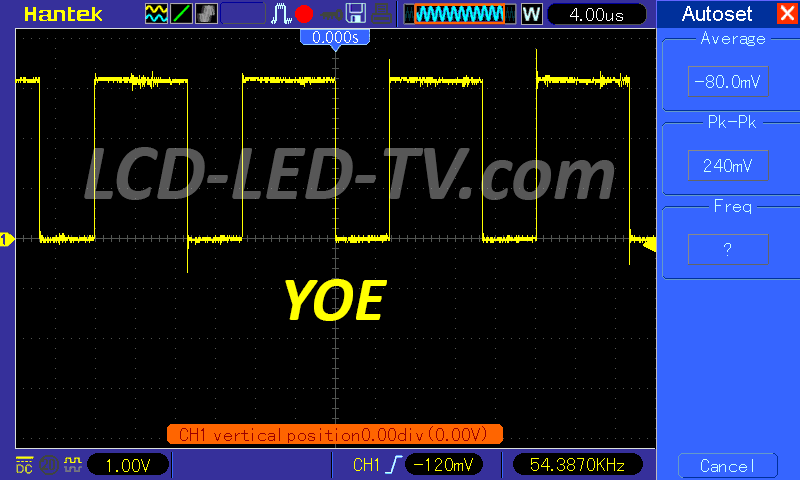

YOE Pulse:

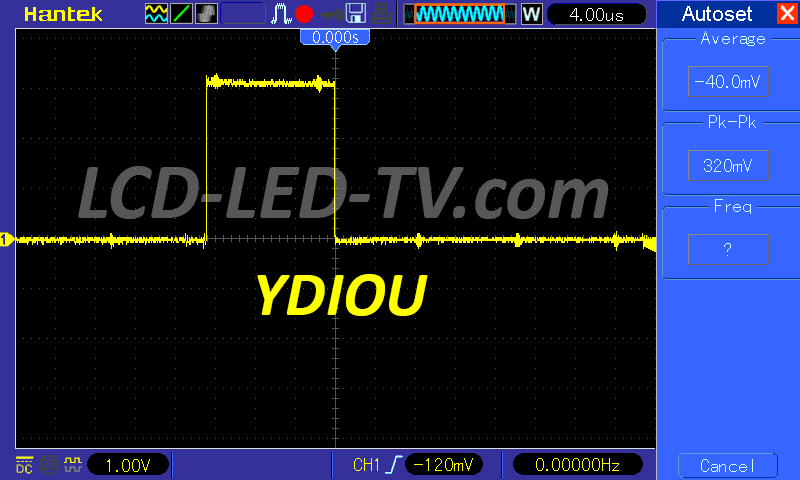

YDIOU Pulse:

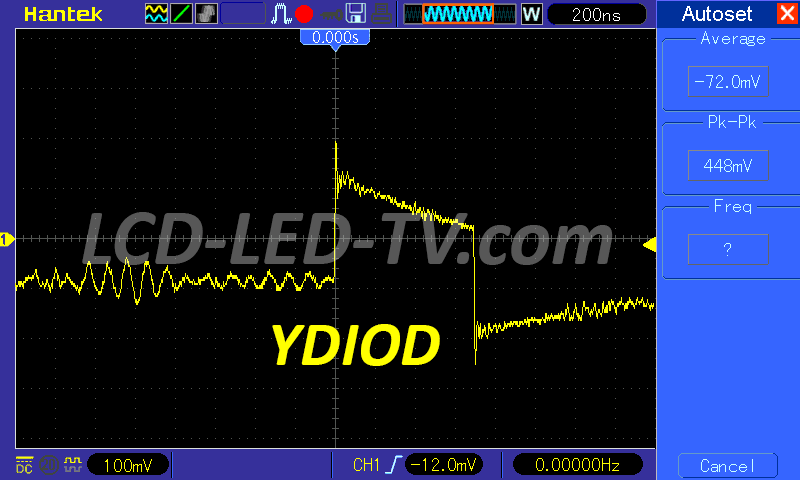

YDIOD Pulse:

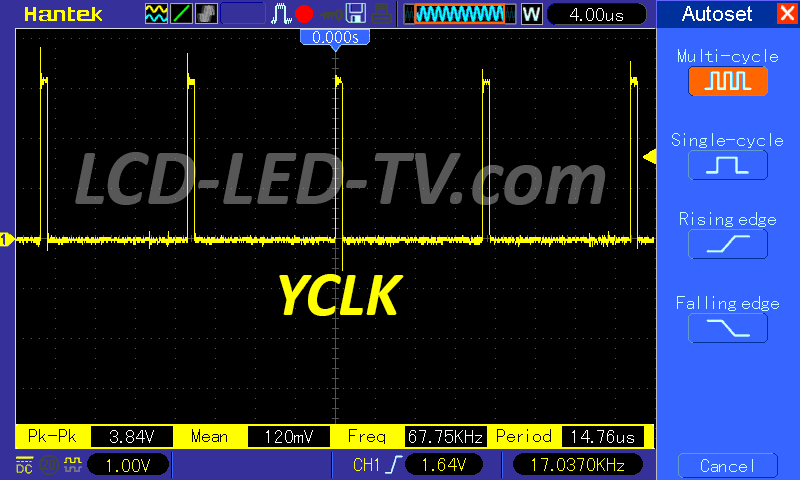

YCLK Pulse:

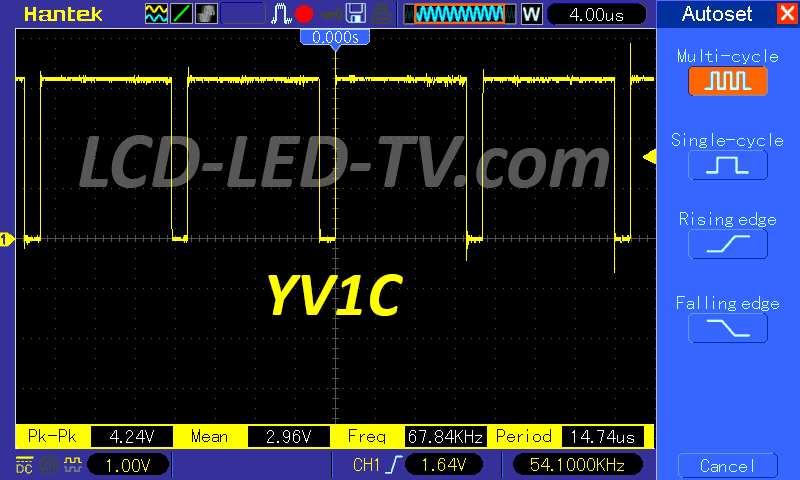

YV1C Pulse:

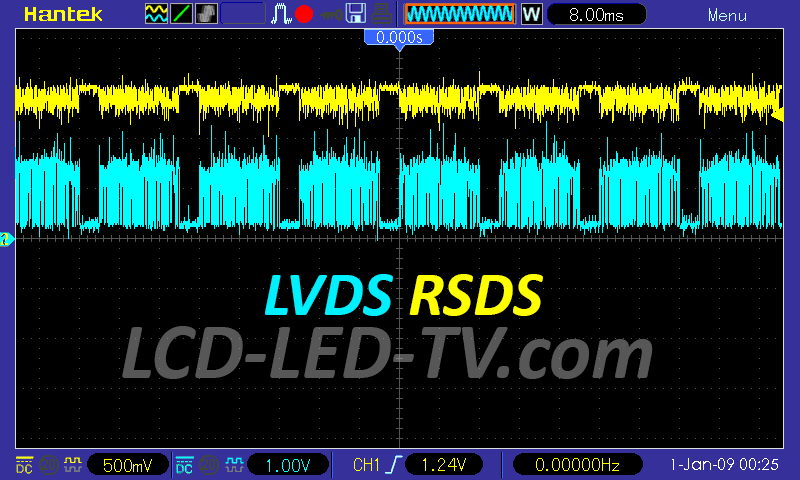

LVDS RSDS Pulse:
